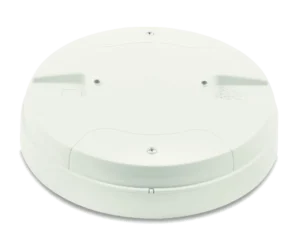

GATEWAY
The FWSG acts as a bridge between fire alarm control panels (FACPs) and Wireless fire devices. It is powered by either the SLC loop or by any FACP AUX or UL-Listed fire alarm power supply compatible with the FACP. The gateway uses the FlashScan protocol on the SLC to communicate with the panel and a proprietary Wireless protocol to communicate with devices.
• External Supply Ratings – 20V – 30V
• Maximum SLC Resistance – 50 Ohms
• Radio Frequency – Lower ISM Band (865 – 867 MHz).
• Operating Temperature – 0°C-49°C
• Humidity – 10 to 93% RH, Non-condensing
• UL Listed
DETECTORS

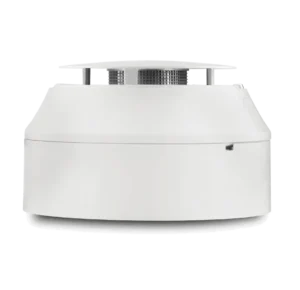

Photo Detectors
Models FWD-200P-IN is a plug-in type smoke sensor that
combines a photoelectronic sensing chamber with wireless
communication. The sensors transmit a digital representation of
smoke density through a wireless mesh to a gateway. The gateway
sends the information to the panel when requested.
• Rotary decade switchesfor setting the sensor address
• 2 LEDs to indicate sensor status.
• Photoelectronic sensing chamber
• Works with standard Notifier base
• Battery Life more than 1 year
• UL Listed
